홈 제품 소개길쌈된 여과기 메시80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory
80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory
80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory
80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory
지금 연락

80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory

최소 주문 수량 : 100 평방 미터 가격 : USD17.00-USD20.000/m²
포장 세부 사항 : 카론, 폴리 백 배달 시간 : 3-7 일
지불 조건 : T/T, L/C, D/P, 웨스턴 유니온, 페이페이 공급 능력 : 1000MTS/일
원래 장소: 중국 브랜드 이름: Share Filters
인증: SGS 모델 번호: PPS 메쉬 59T-45, 80 미크론 두께

상세 정보
제품 이름: PPS 메쉬 패브릭 59T-45, 80UM 두께 키워드: PPS 메쉬 두꺼운 80um
재료: 폴리페닐렌 설파이드 원사 메쉬 수: 59T, 150메시
기공 크기: 125μm 스레드 직경: 45μm
형질: 고온 저항성 180/190°C까지 화학 저항: 훌륭한
부식 저항: 훌륭한 전기분해 저항: 훌륭한
제품 유형: 롤 형태의 PPS 메쉬 너비: 110cm 50cm 30cm, 기타 사용자 정의 너비
강조하다:

PPS mesh membrane for alkaline water

,

80 micron PPS filter mesh

,

woven PPS membrane 110cm width

제품 설명



80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory





PPS (Polyphenylene Sulfide) mesh is a high-performance engineering plastic known for its excellent thermal and chemical resistance. It is widely used in various industrial applications, especially where high temperatures and aggressive chemicals are involved. With outstanding thermal stability, superior chemical resistance, and exceptional mechanical properties, they are ideal for applications in energy production, automotive processing, and advanced manufacturing.


Share PPS mesh woven by high quality Toray yarn and Swiss yarn, available with thickness 80μm 100μm 260μm 285μm, and pore size available in 125 156μm 340μm 350μm.





Common Applications:

  • Filtration: PPS mesh is used in filtration systems for high-temperature and chemically aggressive fluids, including air and liquid filtration.
  • Automotive: It is used in components such as fuel system parts, electrical connectors, and under-the-hood applications where high temperatures and exposure to chemicals are common.
  • Electronics: PPS is used in electrical connectors, switch components, and other electronic parts that require high temperature and chemical resistance.
  • Aerospace: PPS mesh is used in aerospace applications where materials are subjected to extreme conditions.
  • Industrial: It is used in pump components, valves, seals, and gaskets in industrial processes that involve high temperatures and corrosive chemicals.

PPS mesh is used for hydrogen production



80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 0


PPS Mesh Thickness 80 MicronTechnical Data



Product name: PPS mesh 59T-45 Roll length: 50m, 100m, other custom length
Application: Electrolyte, other high temperature corrosion liquid Mesh thickness: 80um
Colour: Beige Mesh count: 150 mesh
Material: Monofilament 100% Polyphenylene Sulfide yarn  Mesh opening: 125μm
Roll width: 110cm 50cm, 30cm, other custom widths Open area: 54%

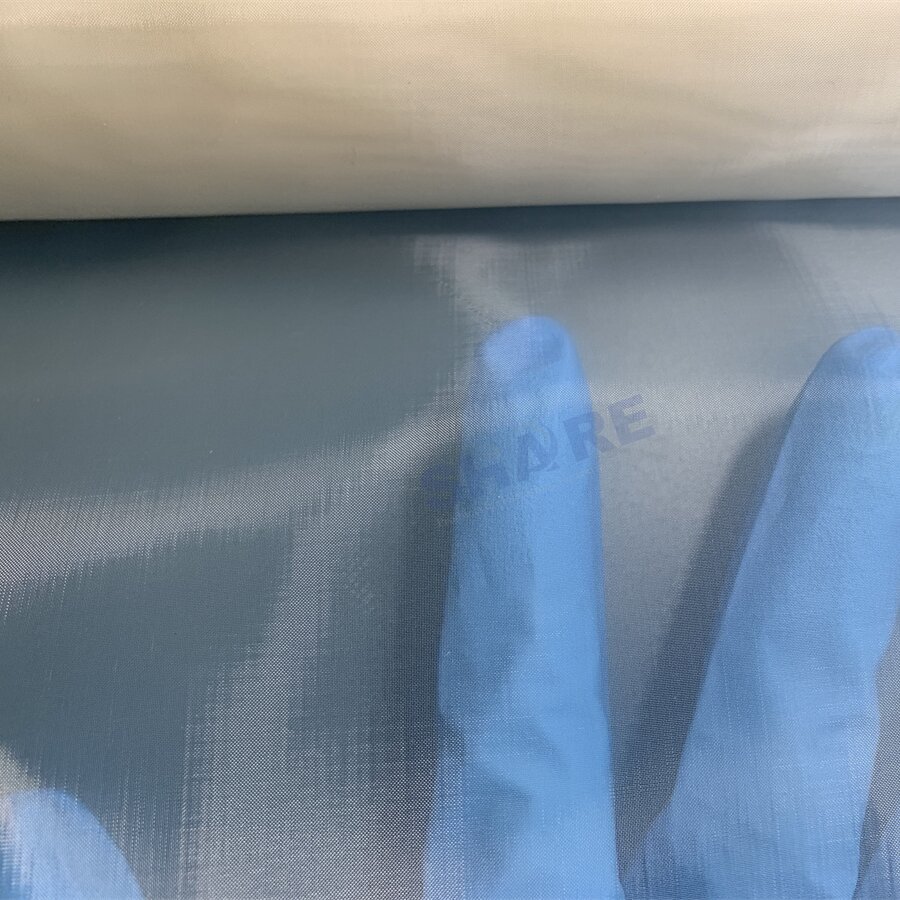

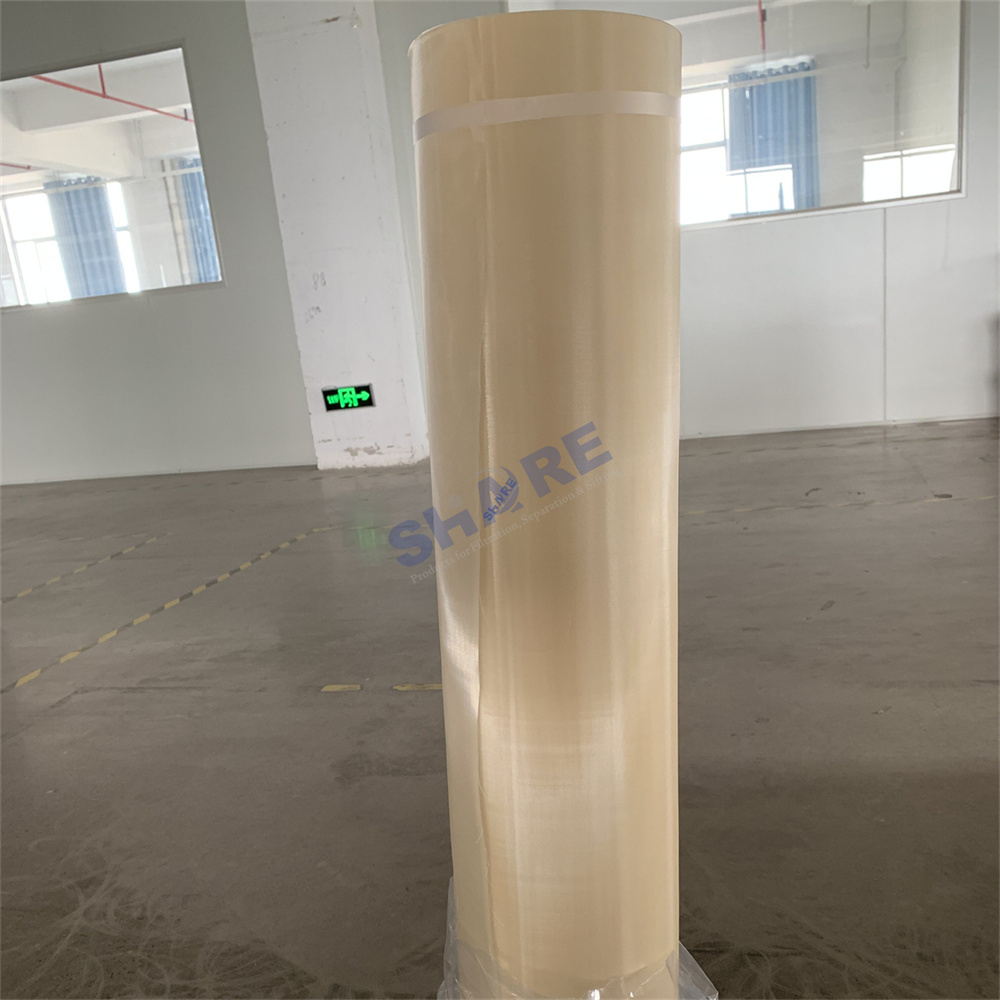

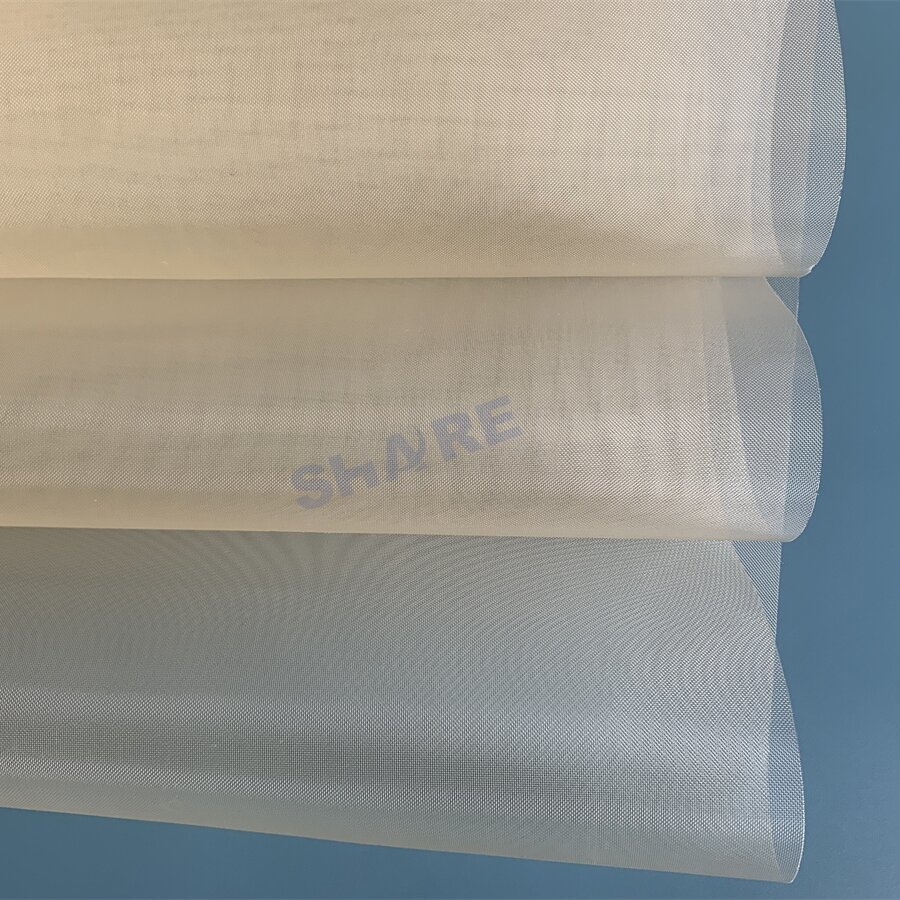

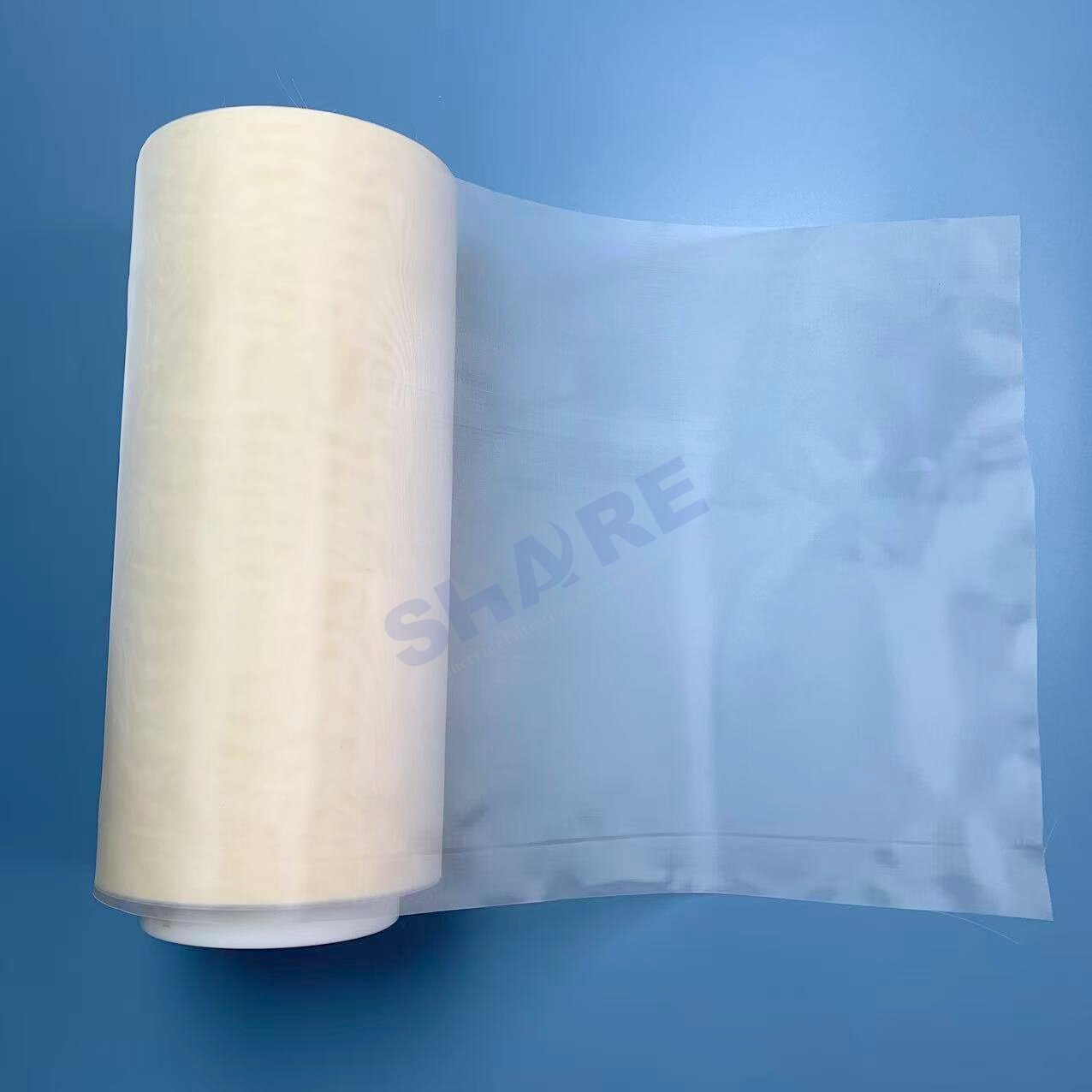

Product Pictures



80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 1

80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 2 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 3

80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 4 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 5

80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 6 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 7





PPS Filter Mesh Data Sheet



Material Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight Tensile Breaking Strength Tensile Elongation
    μm μm % μm g/m2 (N/5CM) (warp/weft) (%) (warp/weft)
PPS (Toray yarn) 16T-140 140 485 60 260 72 - -
PPS 20T-140 140 350 51 260 86 660/643 29.5/27.8
PPS 20T-150 150 340 48 280 100 766/755 29.5/28.4
PPS (Toray yarn) 20T-150 150 340 48 280 100 810/780 24/24
PPS (Swiss yarn) 47T-55 55 156 55 100 34 246/253 26.4/30
PPS (Toray yarn) 59T-45 45 125 54 80 27 210/210 17.7/17.7

This just a part of specifications which commonly used.



80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 8 Mesh Count: Number of openings per inch or centimeter
Weave Type: Plain Weave (PW) or Twill Weave (TW)
Thread Diameter: The diameter of each thread before weaving
Mesh Thickness: The average thickness of the woven mesh
Mesh Opening: The distance between adjacent threads
Mesh Opening =25400÷Mesh Count(per inch)−Wire Diameter
Mesh Opening =10000÷Mesh Count(per cm)−Wire Diameter
Open Area: The ratio (%) of the open area to the thread area within a woven mesh
Open Area %=(Opening Size)2÷(Opening Size+Wire Diameter)2×100





Benefit  of PPS Mesh



High temperature resistance (190° C in continuous using and 220° C at top level)
Excellent chemical resistance. Withstands exposure to corrosive substances, ensuring long-term stability in challenging industrial environments.

Excellent hydrolysis and electrolysis resistance. Very resistant to steam and high pressure water

Outstanding mechanical strength
Dimensional stability at high temperatures
Corrosion resistance
Alternative to PEEK mesh





Properties of Industry Mesh



Material PA6 PA66 PET PP PPS PEEK
Specific gravity (g/mm²) 1.14 1.14 1.38 0.91 1.37 1.30
Tensile strength(daN/mm²) 41-67 41-67 45-75 35-62 60-91 33-75
Relative strength at wet conditions(%) 89-90 85-90 100 100   100
Elongation at break (%) 20-35 20-35 15-30 20-50   20-40
Moisture absorption at 20°C / 65% r.h. (%) 3.5-4 3.5-4 0.4 0 0.6% 0.1
Melting point (°C) 215-220 250-260 250-260 165-175 285-288 334
Softening point (°C) 180 230-235 220-240 140-155 245-270 300
Working temperature dry (°C) -40-115 -40-115 -75 to +150 -30 to +90 Until 215 up to 250
Stability to light poor poor poor poor good good
Atmospheric influence - - none none   none
Abrasion resistance good good limited limited   good
Acid resistance limited-poor limited-poor good good good good
Alkaline resistance good good limited good good good
Stability to solvents limited limited good good good good
Hydrolysis resistance good good limited good good good







What Share Filters Do


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 9



Factory Capabilities



Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to mesh ribbons, mesh shapes , discs, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.



80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 10   80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 11   80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 12
Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.   Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.   Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials.
80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 13   80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 14   80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 15
Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.   Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.   Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.



The Process of Filter Mesh Production

80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 16




Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



Automotive Laboratory Healthcare Appliance Beverage Agriculture
80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 17 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 18 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 19 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 20 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 21 80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 22





Packing and Transportation

80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 23
80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 24


Contact Us


Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.



80 Micron Thickness PPS Mesh Membrane for Alkaline Water Hydrolysis in Custom Width 110cm 50cm 30cm China Factory 25

WhatsApp/Tel: +8615858692620
Email: sales02@sharefilters.com
Address: Pingqiao Industrial Park
Tiantai County, Zhejiang Province 317203, China





FAQ



Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.



Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.



Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.



When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.



What's Your Payment Term ?

T/T and LC and more.



What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.



Can You Process the Filter Mesh?
Yes, that’s where our strength lies, we have full ranges of machines to offer the seivice such as slitting, cutting, welding, sewing and injection moulding. Products include mesh in rolls, mesh pieces, mesh tubes, mesh bags and mesh insert injection molding filters.



What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.



Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.



How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
